Measuring large parts, molds, assemblies and machines used to be a challenging, time-consuming process and often had to be performed in a special inspection area. Portable FARO Vantage Laser Trackers make on-site measurement easy and fast, reducing inspection cycle times by up to 75%. They measure 3D coordinates by tracking a target that the user moves from one point to another on the object being measured. In seconds, these measurements can be compared against nominal CAD data so teams can either make informed adjustments or move forward with confidence.
New to the VantageS6 Max and VantageE6 Max family of Laser Trackers is more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves. With the higher accuracy of the Vantage Max, users can probe more points beyond the line of sight and without tooling changes, resulting in a productivity improvement of 20% compared to lower accuracy probes.
Improve Quality
Complex 3D inspections and automatic reports help users pinpoint defects, while high-accuracy alignment of machinery and robotic systems improves manufacturing quality.
Enhance Yield
Faster troubleshooting and root-cause analysis help increase overall yield.
Increase Throughput
Higher production rates and reduced downtime for verification mean greater throughput.
Vantage Max now has more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves.
Accelerate Revenue Generation
Installs with production equipment and brings products to market faster.
Keep Customers and End Users Happy
Delivering higher-quality products that can be used with confidence makes everyone happy and keeps customers loyal.
Make Informed Decisions
With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.

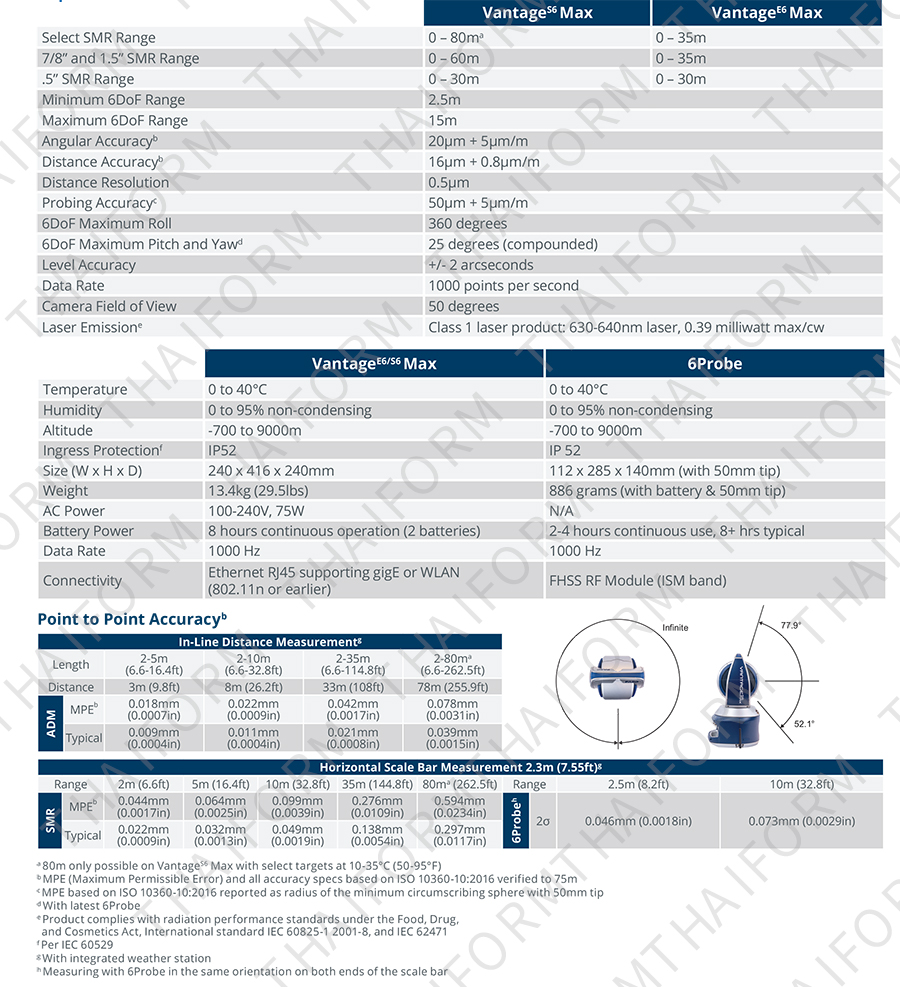

Highest Level of 3DoF and 6DoF Performance
This top-performing laser tracker offers a measurement range of up to 80m with a spherically mounted retroreflector (SMR) and has six degrees of freedom (6DoF) probing capability for maximum inspection throughput.
Standard Level of 3DoF and 6DoF Performance
This laser tracker offers a measurement range of up to 35m with an SMR and has 6DoF probing capability for maximum inspection throughput.
Highest Level of 3DoF Performance
The VantageS offers a measurement range of up to 80m with an SMR for the largest volume applications.
Standard Level of 3DoF Performance
The VantageE offers a measurement range of up to 35m with an SMR.
ActiveSeekTM Technology
Follow a moving target, even behind obstructions, with the industry’s widest field of view.
6Probe
Use the handheld 6Probe with interchangeable kinematic styli for 6DoF measurement — the ability to measure hidden areas that are not in the direct line of sight.
Fast Data Acquisition
Capture data quickly for high-speed motion control and high-density scanning.
Large-scale Production with Precision
Ensure equipment alignment and adherence to the tightest tolerances when producing large parts, guiding assemblies, calibrating robots and manufacturing tooling, From aerospace to shipbuilding, leaders in the most innovative industries rely on Vantage Max Laser Trackers from FARO to produce the most advanced parts, assemblies and composites with speed and accuracy.
Enhanced Quality Control for Large Parts
Inspect large parts and assemblies and composites up to 75% faster than with traditional measurement methods. Vantage Max Laser Trackers produce a digital record of actual versus nominal data to validate conformance to specification for complete quality assurance.
Accelerate the design process and your product improvement initiatives with Vantage Max Laser Trackers. Whether your work involves replacement parts or documenting as-built products and tooling, the Vantage Max trackers ensure accuracy during rapid prototyping and integrate well with reverse engineering software.
